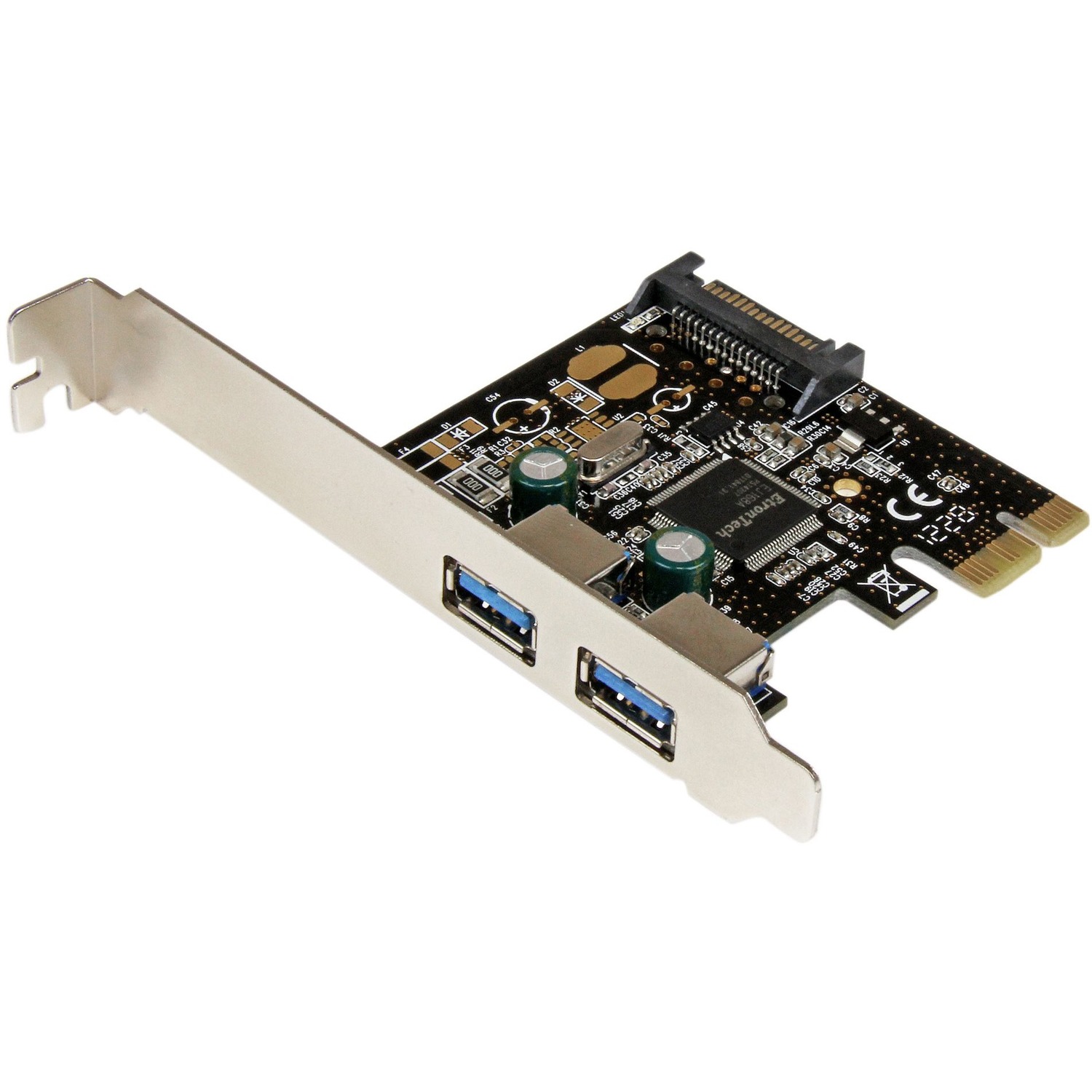

StarTech.com 2 Port PCI Express PCIe SuperSpeed (5Gbps) USB 3.0 Controller Card w/ SATA Power

Item #: STCPEXUSB3S23
Thumbnail image 1 of 4
Thumbnail image 2 of 4
Thumbnail image 3 of 4
Thumbnail image 4 of 4
STCPEXUSB3S23 STCPEXUSB3S23 STCPEXUSB3S23 STCPEXUSB3S23
$37.99 / Each
Packaging: 1 Each
High Resolution
Hi - Res
User Manual
User Manual
Non Returnable Non Returnable
Special Order Item Special Order Item
Shippable Product Shippable Product
PCI Express x1 - Plug-in Card - 2 USB Port(s) - 1 SATA Port(s) - PC
  • Provides two external USB 3.2 Gen 1 connections
  • Supports data rates up to 5 Gbps
  • SATA power connector (required) provides up to 900mA per USB port
  • Compliant with PCI Express 2.0 specifications
  • Fully compliant with USB 3.2 Gen 1 rev 1.0 and Intel xHCI rev 1.0 specifications
General Information
Manufacturer
StarTech.com
Manufacturer Part Number
PEXUSB3S23
Manufacturer Website Address
https://www.startech.com
Brand Name
StarTech.com
Product Name
2 Port PCI Express PCIe SuperSpeed (5Gbps) USB 3.0 Controller Card w/ SATA Power
Marketing Information

The PEXUSB3S23 2-Port PCI Express USB 3.2 Gen 1 Card lets you add two USB 3.2 Gen 1 ports to any PCI Express-enabled computer system. The USB card requires SATA power for functionality, and delivers 900mA of power per port to USB 3.2 Gen 1 bus-powered devices (500mA for USB 2.0) via your computers SATA power connector.
The PCIe USB 3.2 Gen 1 adapter is compliant with USB 3.2 Gen 1 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Packaged Quantity
1 Each
Product Type
USB Adapter
Catalog
General Line (consumer) Catalog
Catalog Page
SPC
Technical Information
Host Interface
PCI Express x1
Media & Performance
UASP Support
No
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 3.2 Ports
2
Number of SATA Ports
1
Software
Operating System Supported
  • Windows XP
  • Windows Vista
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows 10
  • Windows 11
  • Windows Server 2003
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2016
  • Windows Server 2019
Physical Characteristics
Color Family
Black
Product Color
Black
Form Factor
Plug-in Card
Height
4.7"
Width
0.8"
Length
3.1"
Weight (Approximate)
1.52 oz
Miscellaneous
Package Contents
  • 2 Port PCI Express PCIe SuperSpeed (5Gbps) USB 3.0 Controller Card w/ SATA Power
  • 1 x Low Profile Bracket
  • 1 x Driver CD
  • 1 x Instruction Manual
Additional Information
  • Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64)
  • Windows Server® 2012, 2008 R2, 2003
    • Platform Supported
    PC
    Country of Origin
    China
    Environmentally Friendly
    Yes
    Environmental Compliance
    • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
    • Restriction of Hazardous Substances (RoHS)
    • Waste Electrical and Electronic Equipment Directive (WEEE)
    2 Year
